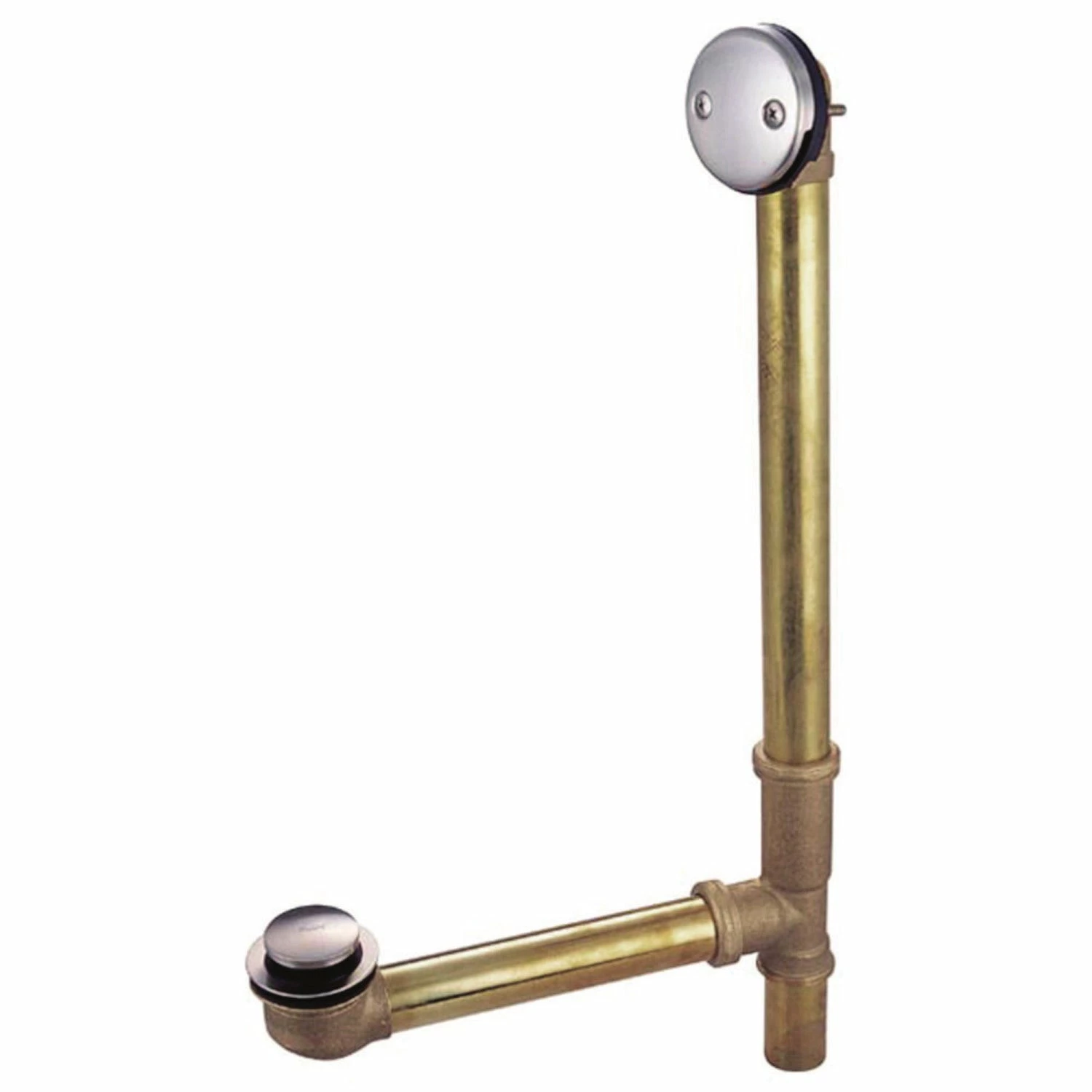

Made To Match DTT2168 21-Inch Brass Toe Touch Tub Waste And Overflow, Brushed Nickel

Made To Match DTT2168 21-Inch Brass Toe Touch Tub Waste and Overflow, Brushed Nickel

For an added simplicity and ease to your bathing experience, this toe touch drain will perform like a state-of-the-art product. Simply push the drain open or closed with the touch of your foot to activate the spring mechanism. Available in multiple finishes to match your tub filler faucet, the Kingston Brass 21-Inch toe-tip bathtub waste and overflow drain will fit standard bathtub sizes. All necessary piping and overflow is included for use with your pedestal or clawfoot tub.

Features

• Fabricated from solid brass for reliability
• Toe touch drain for easy operation
• 24-1/2″ overflow pipe
• 12″ drain pipe
• 1-1/2″ diameter tube
• 1-3/8″ thread length
• Fits tubs up to 20″ deep (Overflow to Drain)
• Fits standard 1-1/2″ NPSM threaded drains
• 20 gauge

Downloads / Specs

	Specification Sheet
	Parts Diagram
	Installation Guide
